GPI Input and Output Cards
USB discrete input/output expansion cards are designed to enhance systems and devices by the supply of the required number of discrete inputs / outputs with galvanic isolation. The cards are equipped with WatchDog to track the status of your computer and restart it in the case of hanging.
The cards are equipped with:
- 62-pin DB connector for discrete inputs / outputs connection;
- A group of jumpers for assigning the discrete inputs condition;
- USB-port for connecting USB-devices;
- Connector for connecting to a computer motherboard;
- Watchdog for monitoring the system condition.
Key functions
- Tracking the discrete inputs condition;
- Changing the condition of discrete outputs;
- Tracking the status of your computer and restarting it in the case of hanging.
Package contents
- USB-IO device;
- Mating part for DB62 connector;
- DB62 connector housing;
- CD-ROM with drivers;
- Cable for connecting the device to a computer motherboard.
USB 16-8 I/O card
| Interface | USB 2.0 connection to a computer motherboard |
| Alarm contacts | 16 inputs (Power external or internal) |
| Relay contacts | 8 outputs |
| Power | through USB port |
| Size (H х W х D) | 130 x 75 х 21 mm (51" x 29.5" x 8.3") |
| Weight | 90 g |

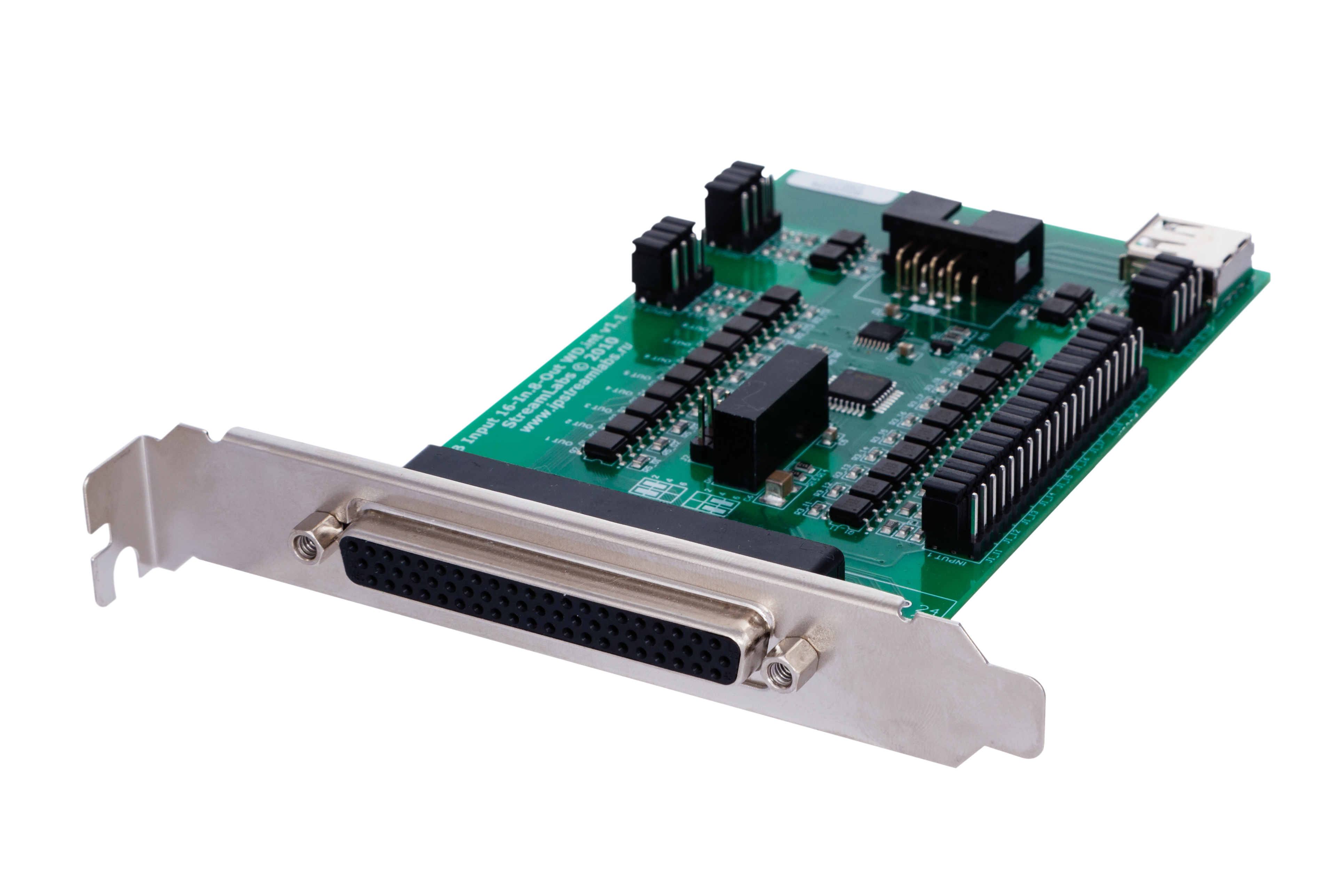

USB-IO 24-4 I/O card
| Interface | USB 2.0 connection to a computer motherboard |
| Alarm contacts | 24 inputs (Power external or internal) |
| Relay contacts | 4 outputs |
| Power | through USB port |
| Size (H х W х D) | 130 x 75 х 21 mm (51" x 29.5" x 8.3") |
| Weight | 90 g |
