SL Optic
Meet SL Optic, a trusted solution for top-tier video signal transmission.
Engineered to transform electrical 12G-SDI signals into optical ones, SL Optic enables seamless transmission over distances reaching up to 60 km without any latency, maintaining exceptional audio and video clarity.
Supporting a broad range of SDI standards, including 12G-SDI, HD-SDI, and SD-SDI, this converter seamlessly integrates with diverse professional setups. Its adaptable design works with various SFP modules, boosting data capacity on a single optical channel, thus minimizing infrastructure expenses while offering unmatched flexibility for broadcast, production, or live event scenarios.
Key Features
- Broad SDI compatibility including 12G-SDI, 3G-SDI, HD-SDI, and SD-SDI, ensuring smooth connectivity with professional gear
- Four independent channels for simultaneous audio and video handling, providing adaptability for intricate configurations
- Dual power supply redundancy to guarantee stable operation in mission-critical environments
- User-friendly graphical display and remote network management for quick signal monitoring and adjustments
- Configurable signal transmission settings via DIP switches for straightforward setup and customization
- Available as a standalone unit or as a rack-mountable version for up to three units, featuring dual power supplies for extra reliability
- Modular SFP design to enhance data throughput over a single optical link, reducing costs and ensuring scalability

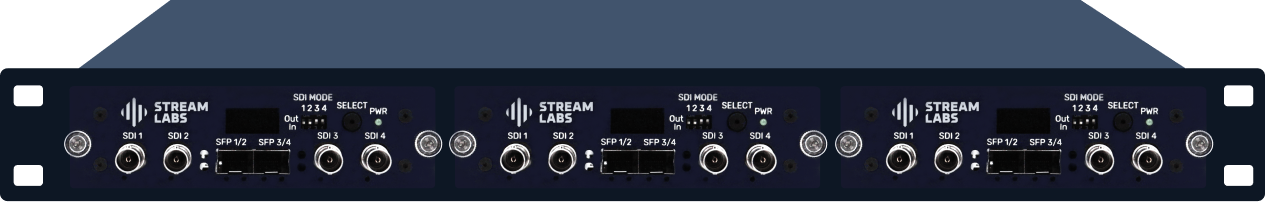

Three devices in a 1U chassis with independent bidirectional 12G-SDI ports.
Technical Specifications
- Video Interfaces: 4x12G-SDI
- Supported Video Formats:
- (4K) 4096x2160p at frame rates of 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- (UltraHD) 3840x2160p at frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (2K) 2048x1080p at frame rates of 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- (HD) 1920x1080p at frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1920x1080i at 50, 59.94, 60
- (HD) 1280x720p at 50, 59.94, 60
- (SD) 625i 50 and 525i 59.94
- Supports RGB and YCbCr, 4:4:4/4:2:2, 10-bit
- Digital Video I/O: 4x12G-SDI BNC, compliant with SMPTE 259/292/424/2081/2082
- Audio Compatibility: Embedded audio support with SMPTE 272M (SD) and SMPTE 299M (3G/HD), handling up to 16 channels
- User Interface: External DIP switch control
- Physical Dimensions: 42x483x290 mm
- Network Interfaces: 2x SFP+ (MSA, non-MSA compliant)
- Status Display: Integrated status indicators
- Operating Temperature Range: +5°C to +40°C
