MultiScreen - instrumental monitoring system / multiviewer for UNLIMITED number of TV and Radio channels

Stream MultiScreen system is intended for simultaneous visual and instrumental monitoring of multiple video and audio sources in real-time using one or several LCD-panels in poly-screen mode.

Having been based on successful combination of versatile features, which include multi-channel and multi-format abilities and high-level reliability, MultiScreen system has been implemented in the projects of largest Satellite and Cable Head-End operators, TV Channels and OTT operators.


Supported inputs:
Stream MultiScreen server represents an effective media platform, which provides simultaneous visual and instrumental control of unlimited number of TV- and Radio- channels. The number of physical inputs per 1 server depends on the installed input card.
  • Composite (NTSC, PAL, SECAM);
  • Analog (NTSC, PAL, SECAM);
  • SD-SDI (SMPTE-259M, 10 bit, 270 Mbit/s);
  • HD-SDI (SMPTE-292M, 10 bit, 1,5 Gbit/s);
  • DVB-ASI (ETSI EN 50083-9). Bitrate range 0..214 Mbit/s;
  • AES/EBU (24 bit/ 192 kHz) channels;
  • DVB-T/T2 (ETSI EN 300 744, 302 755);
  • DVB-S/S2 (ETSI EN 300 421, EN302-307, EN301-210);
  • DVB-C/C2 (ETSI EN 300 429 Annex A/B/C);
  • IP/Ethernet (ETSI TS 102 034).

Video input formats:

  • MPEG-1 (ISO/IEC 11172-1);
  • MPEG-2 (ISO/IEC 13818-1);
  • MPEG-4.2 (ISO/IEC 14496-2);
  • MPEG-4.10 (H.264, ISO/IEC 14496-10).
  • HEVC (ITU-T H.265 High efficiency video coding)

Audio input formats:

  • MPEG-2 Layer II (ISO 11172-3);
  • Dolby Digital (E-AC3, AC-3, ATSC A.52b);
  • AAC/ADTS/LATM/ADIF (ISO/IEC 13818-7, ISO 14496-3);
  • AES SMPTE 302M

Data containers:

  • MPEG-2 TS (ISO/IEC 13818-1), MPTS or SPTS;
  • DVB T2-MI Streams (ETSI TR 101 290-1, А14-1). Option DVB T2MI splitter;

Supported Mobile and Internet streaming (OTT) protocols:

  • FLASH RTMP streams (Real Time Messaging Protocol). The support of H.264 video and AAC and MP3 audio streams;
  • HLS (HTTP Live Streaming Monitoring); supports encrypted streams
  • MMS&MMSH (Microsoft Media Server Protocol & MMS over HTTP);
  • RTSP (RFC 1889, 2326, 3550).


  • Teletext and Closed Captions (ETSI EN 300 472 , ETS 300 706)
  • DVB Subtitles (ETSI EN 300 743)
  • EPG (ETSI EN 300 468)
  • SCTE-35 over MPEG2-TS Digital Program Insertion Cueing Message logging
  • SCTE-104 over SD\HD-SDI logging and reporting

Supported external events' notification:

  • SNMP Trap (RFC 3411-3418, STD0062);
  • SNMP Get (RFC 1155, RFC 1212, RFC 1213, RFC 1157, RFC 3411).
Supported Outputs:
  • Video: up to 6 VGA, DVI-D, HDMI v.1.3, v1.4(Video+Audio), DisplayPort.
  • Audio: 3,5” mini jack, stereo, unbalanced and balanced, S/PDIF, HDMI, Display Port.
  • TSoIP. Encoding Mosaic to IP (Optional): MPEG-2 transport stream, H264/AVC, HD up to 1080.
  • TSoIP. Encoding Video/Audio from input interfaces(SDI\Composite) to MPEG-2 transport stream, H264/AVC, HD up to 1080.
  • Mosaic over HLS (HTTP Live Streaming)
  • Any video channel over HLS (HTTP Live Streaming)

All measurement errors and clearing are signaled via multiple communication routes:

  • On-screen Visualization Alerts
  • Audio Alerts
  • Visual Alerts in MultiMonitor(State Panel)
  • SNMP traps
  • Email sending


Integration of visualization with external devices in accordance with TSL UMD v.5.0 Protocol is implemented.
Visual object for UMD, which includes 2 indicators and text box, can be added to visualization mosaics.
Control of UMD is carried out by external devices (like TSL TallyMan
controller) in accordance with TSL UMD v.5.0 Protocol.


List of Alarms

Reception and displaying of video/audio signals, facilitating instrumental intelligent analysis; and control of input signals for a number of important parameters according to ETSI TR 101-290 (ETR 290) level 1 and 2:

No license
Low throughput
TR-290 TS_sync_loss
TR-290 transport_error
TR-290 PAT sections loss
Service lost
TR-290 PMT sections error
TR-290 CAT sections error
TR-290 PCR repetition error
TR-290 continuity counter error
PID scrambled
PES decoder error
Black video
Video aspect ratio
Audio signal level: overload
Transport Stream Bitrate
Teletext page loss
TR-290 EIT Error
TR-290 EIT PF Error
HLS Transport error
Sync loss
Signal loss
TR-290 sync_byte_error
TR-290 PAT sections error
TR-290 PMT sections loss
TR-290 CAT sections loss
TR-290 PCR discontinuity indicator error
PID lost
RTP sequence error
TR-290 PTS error
Decoder runtime error
Frozen video
R-128 Loudness Level
Audio signal level: silence
Service Bitrate
Subtitles Loss
TR-290 EIT Actual Sections Loss
TR-290 EIT Other Error

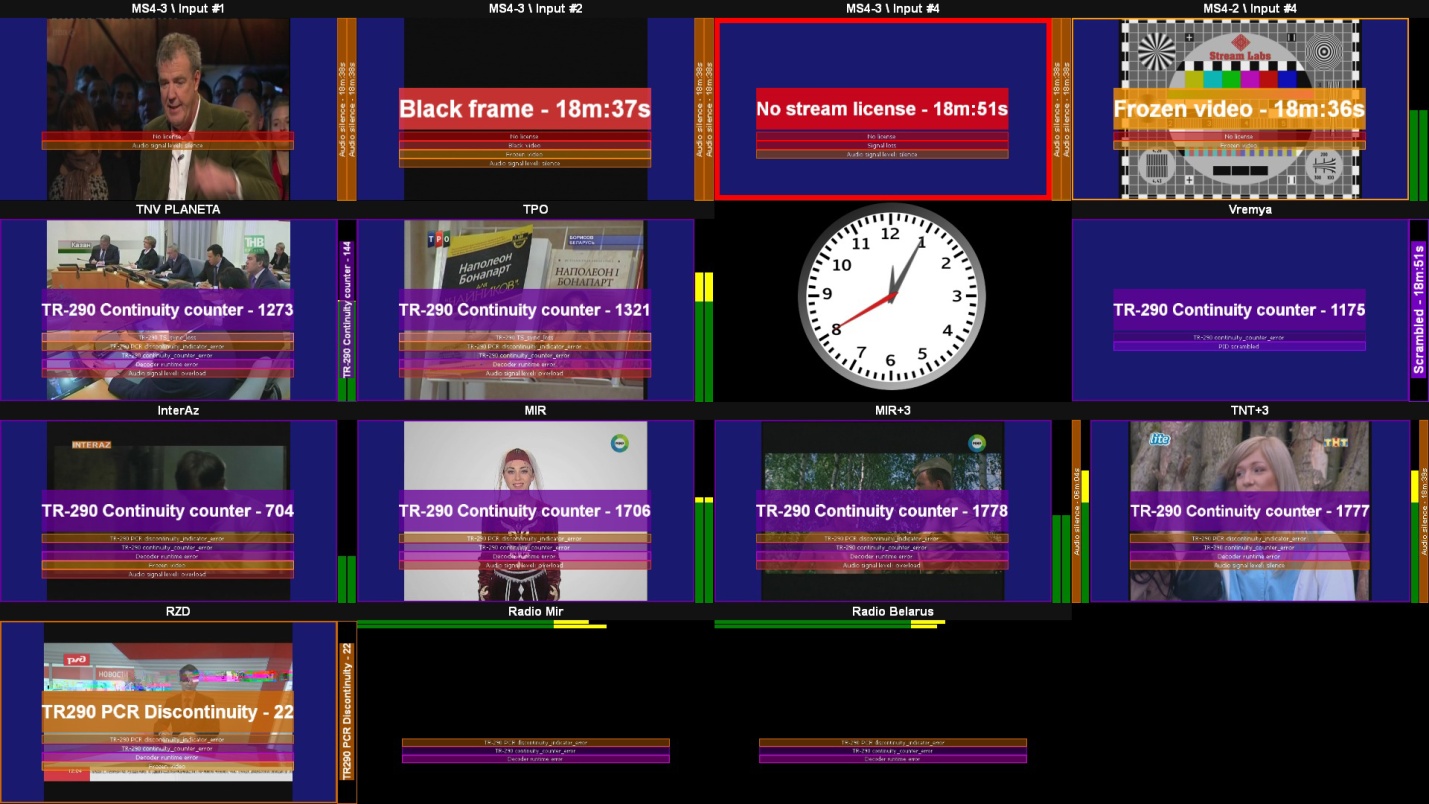

Example of Mosiac                                                            DVB Subtitles, TeleText, Loudness, Multichannel Audio

Displaying of EPG: EIT Present and EIT Following            Displaying of the content of web pages

Displaying of information about TS on a top of Video:     Service number and Service bitrate
 PID Program Map Table (PMT)
 PID Program Clock Reference (PCR)
 PID and audio stream codec of the program
 PID and video stream codec of the program
 Resolution of video stream and FPS
 Aspect Ratio
 Bitrate of Video stream
 Bitrate of Audio stream
 Teletext PID and bitrate
 DVB Subtitles PID and bitrate

History of Alarms displayed on TV screen


Active Alarm displayed with timer + history inside            On-screen visualization of Alarms

This basic diagram shows monitoring and recording of TV channels in compliance with regulations.

Client application MultiMonitor allows managing of  all servers in the network, creating of Screen Views for MultiViewers, loading
events from database for preview, watching of  channels’ statuses, redirecting channels with problems to Penalty Server,
downloading video with errors from storage, providing visual and audio alerts to operator, emailing, etc.

EPG Decoding in MultiMonitor app.(EIT tables+Toolbox)  Database Viewer

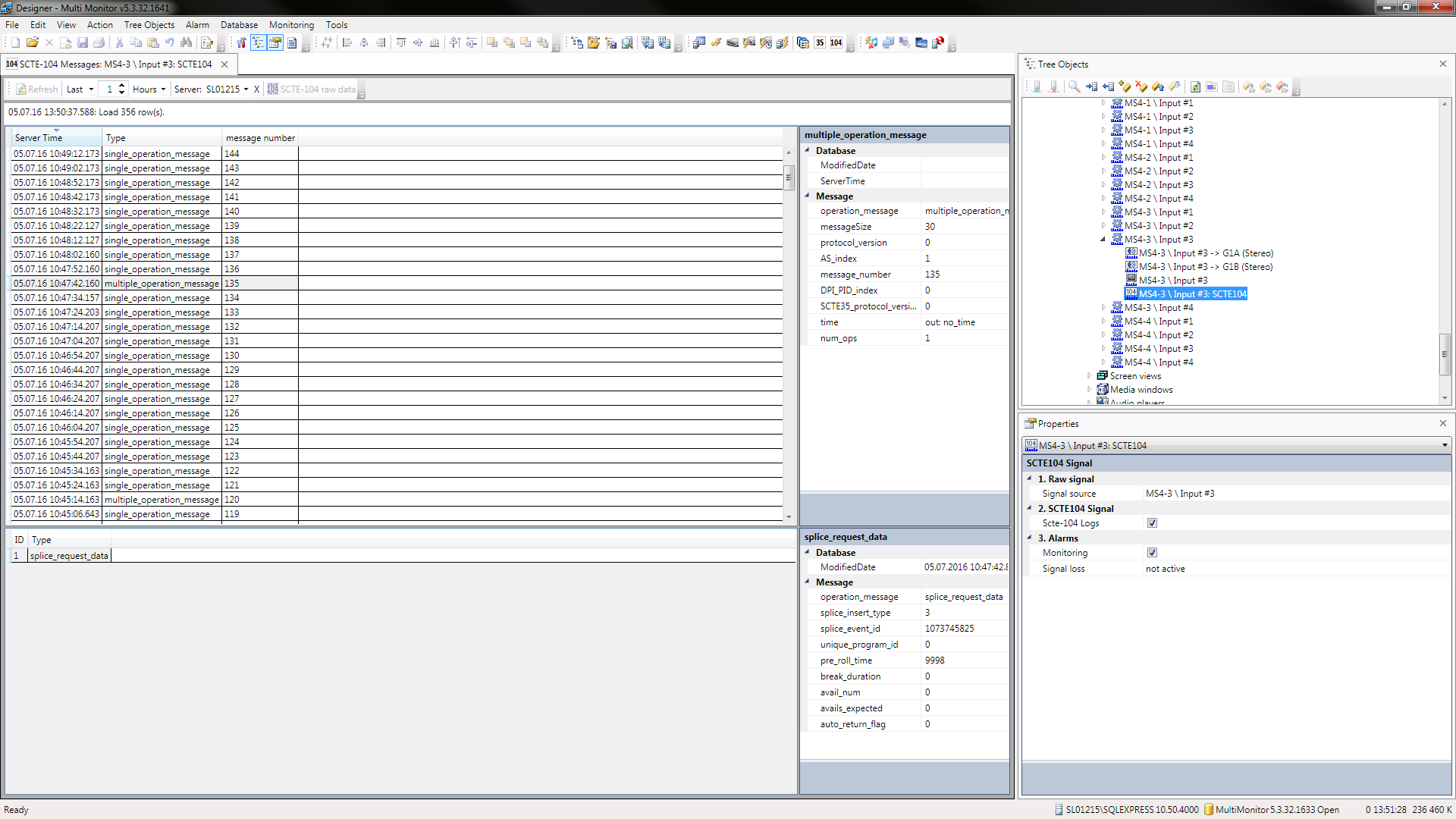

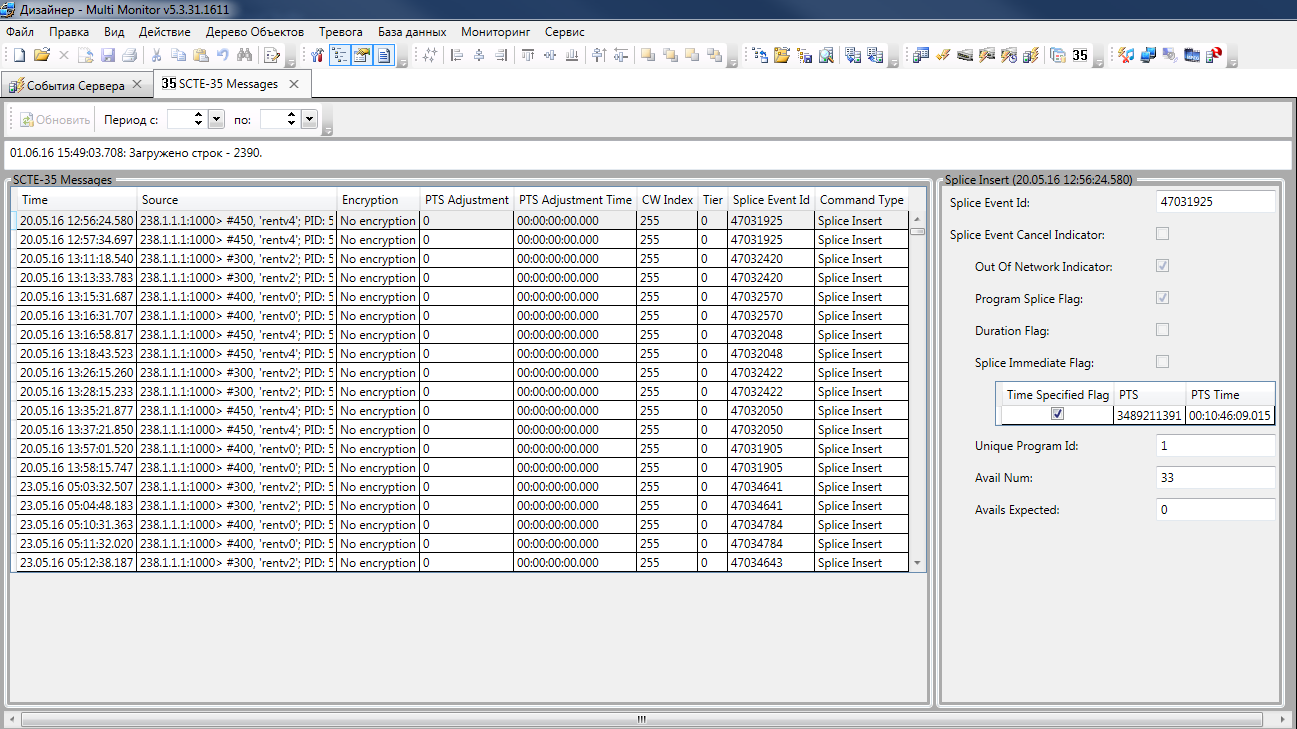

SCTE-104 Logging                                                            SCTE-35 Logging

Loudness Measurement according the ITU-R BS.1770 standard end EBU R-128 recommendation.

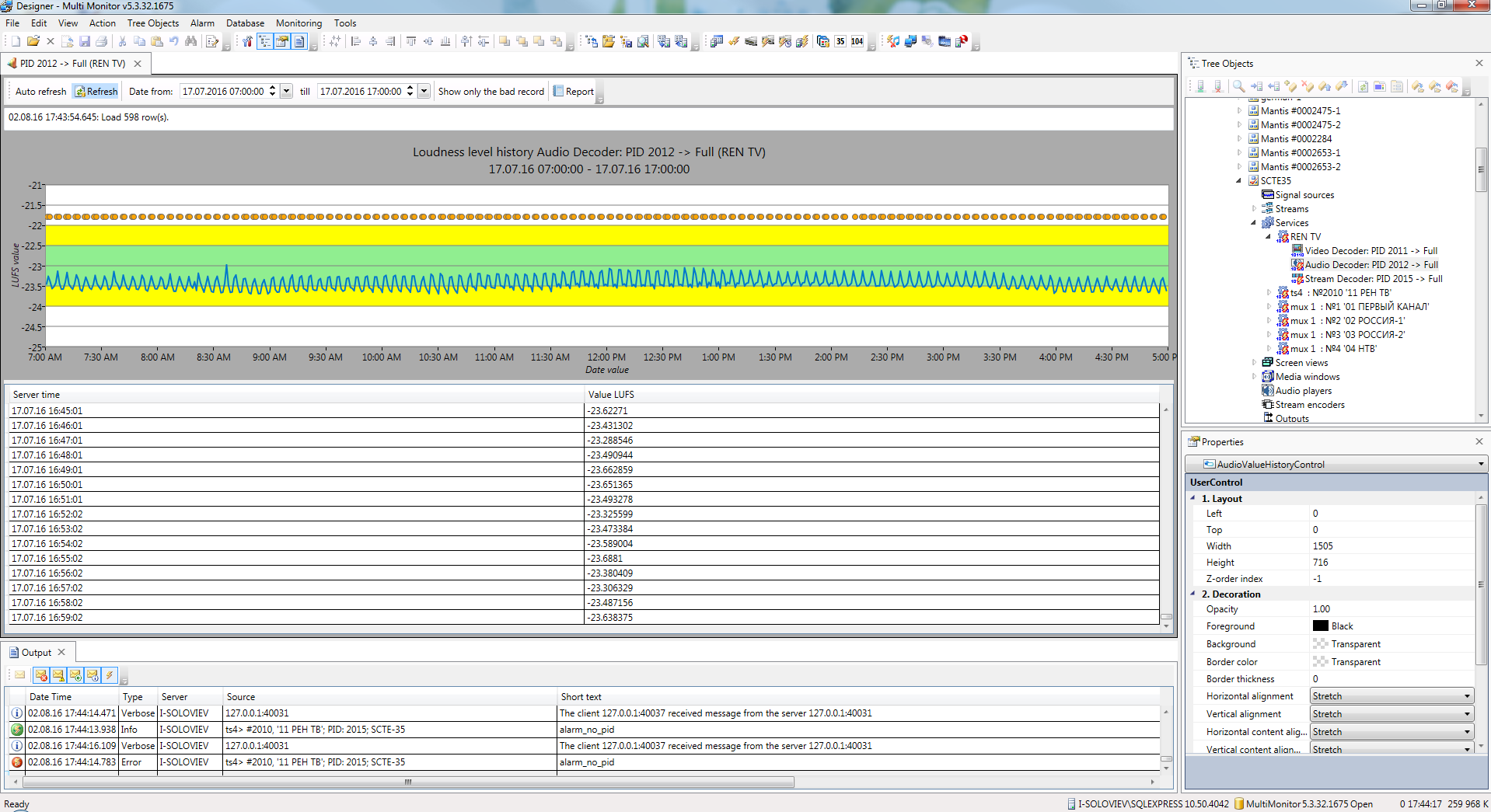

Loudness Chart\Graph formation in real time or from database
Allows to control any number of Audio PID's(decoders) in one service.
Loudness Range (LRA)
R-128 Loudness Level
Loudness Splash
Loudness Short Term
Loudness True Peak


Examples of configured Operator's application MultiMonitor - Statuses of all channels from all servers can be displayed in one MultiMonitor application on Operator's PC.

Integration with MultiRec - Recording system
Stream MultiScreen can work jointly with system MultiRec, crafted for compliance recording. Database for alerts , generated by
MultiScreen has been integrated with archive of recordings, produced by MultiRec; and allows downloading of fragments of
archive, matching to alerts, straight from MultiScreen application in one click. You may view them later on at your convenience.




    Recorders in client application                                         Downloading video fragment with Error from Storage
